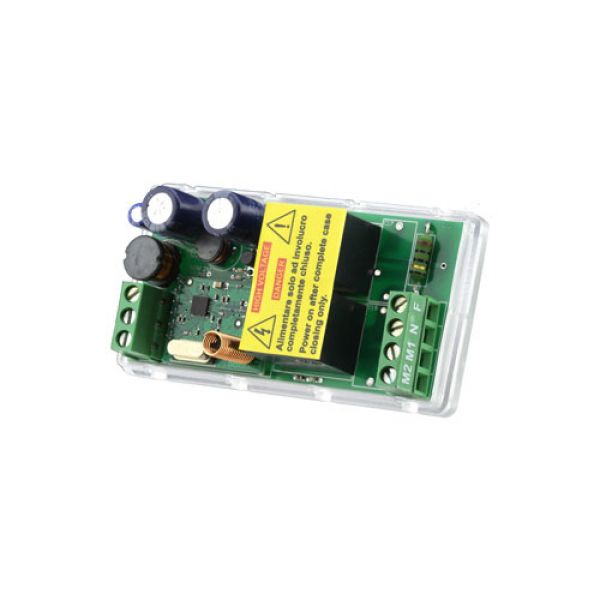

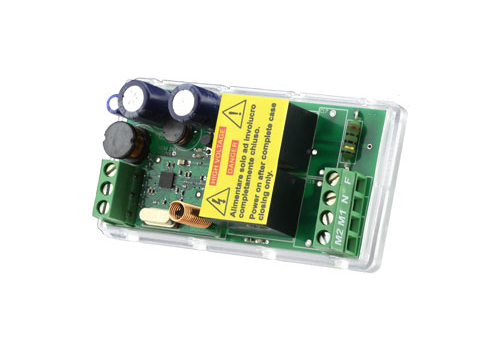

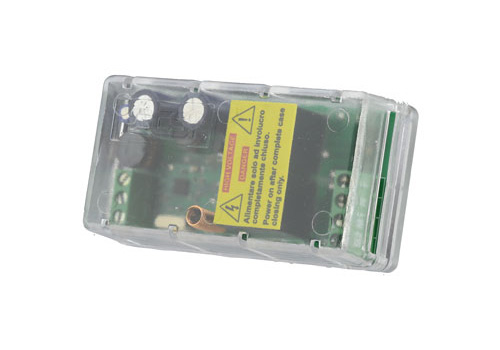

REM 2M WLINK

Radio (Wlink) module for smart building applications with two operating modes: “motor control” and “lights/loads control”.

In “motor control” mode, REM 2M WLINK drives directly the rotation directionof the motor, based on programmable smart automations and/or manual control:

- The two inputs onboard provide a local control, both “direct” (one button for up and one button for down) and “impulsive” (single button “up-stop-down-stop”).

- It is possible to include safety controls for up and down movements and activate anti-pinching protection.

In “lights/loads control” mode, REM 2M WLINK activates and deactivates independently the two relay outputs, connected to lights (or other loads).

The two inputs onboard provide activations and deactivations (also timed) and lock-off.

The outputs (250Vca/10A relays) can be triggered both from smart building functions and from manual controls.
